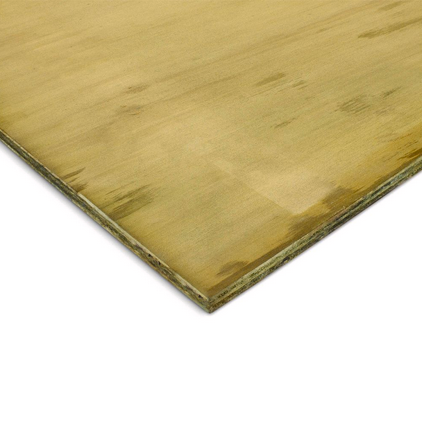

PLY H3.2 DD F8 2400x1200x19mm { STRUCTURAL }

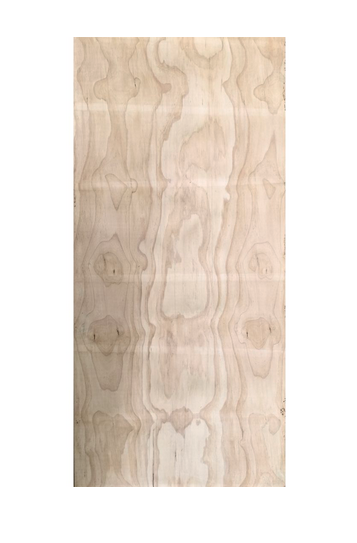

Image may vary depending on size of product

Ecoply® structural plywood is a layered panel made from New Zealand pine wood veneers manufactured by
Carter Holt Harvey Plywood Limited (CHH Plywood) to the requirements of AS/NZS 2269. Adjacent layers
(veneers) are bonded together with synthetic phenolic (PF) resin set and cured under heat and pressure in
controlled conditions to form a strong and durable Type A bond. The veneers are typically at right angles to
each other to deliver two-way strength and stability.
Ecoply structural plywood, designed in accordance with Verification Method B1/VM1 or specified in accordance
with Acceptable Solutions E2/AS1 and B1/AS1 is suitable for use as structural panels within structural systems
designed and specified by engineers and other suitable design professionals. Ecoply structural plywood is to be
installed in accordance with the specifications and details provided by design professionals.
The durability of Ecoply plywood products should be detailed by qualified design professionals to meet the
requirements of New Zealand Building Code (NZBC) Durability Clause B2.
Ecoply is available in F8, F8/F5 and F11/F8 stress grades in a range of surface appearance grades including CD
and DD and is available untreated, H3.1 LOSP treated and H3.2 CCA treated.
